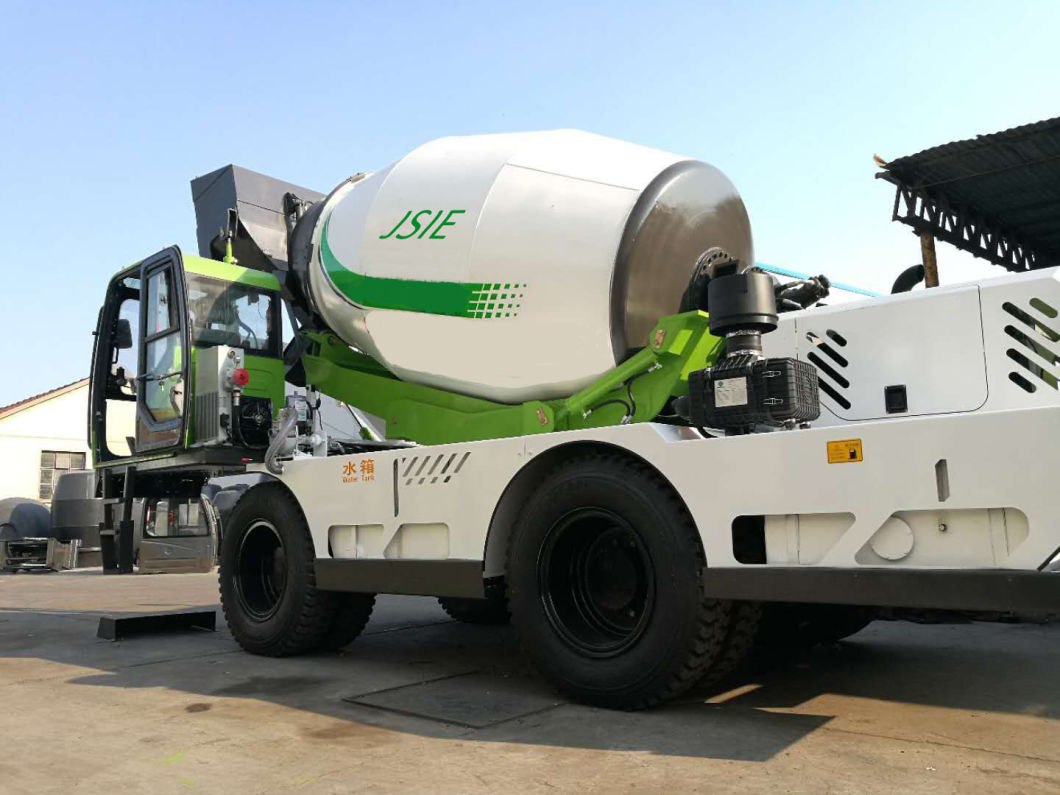

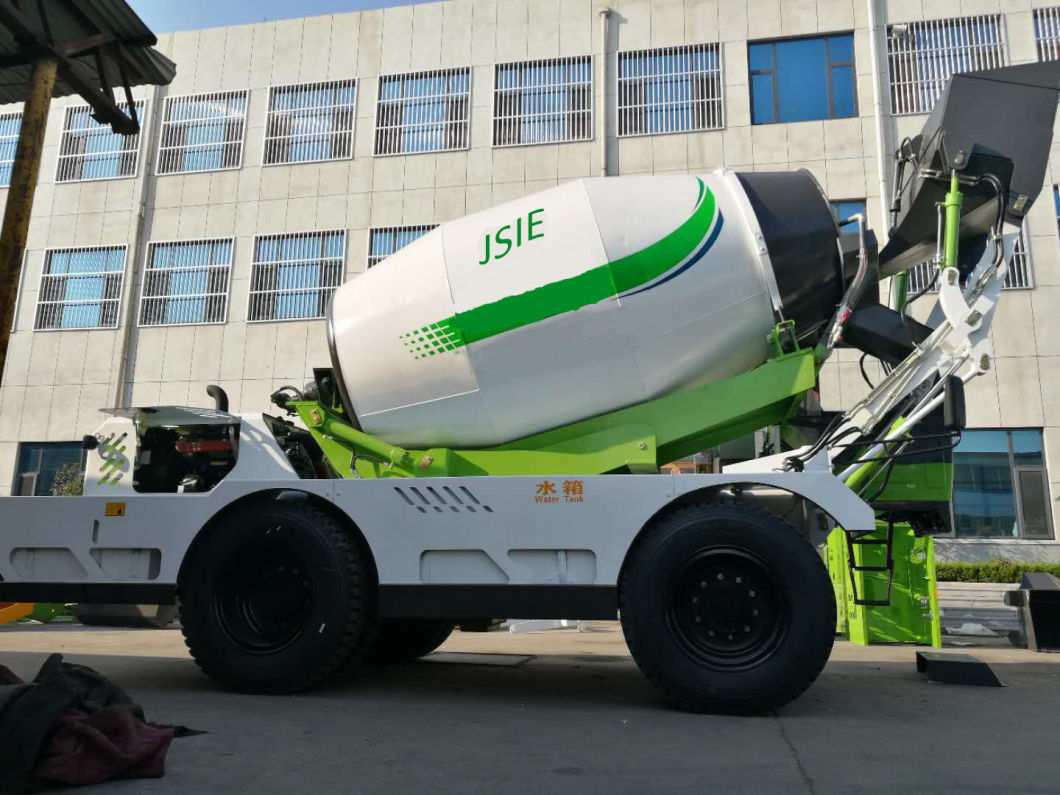

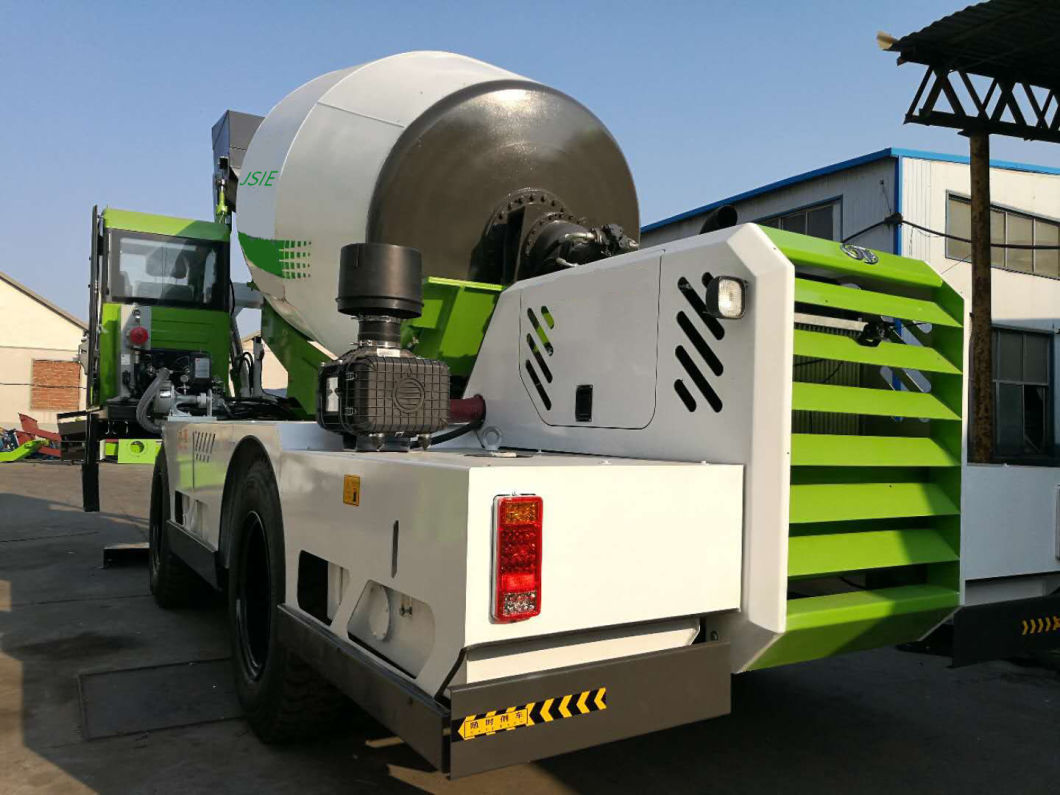

2.6 M³ Self-Loading Concrete Mixer Truck

  • Concrete Mixing Truck

  • Wet

  • Hydraulic

  • Rotor Type

  • 25m²/h

  • 2350mm

  • JSIEBC-24

  • Without

  • New

  • White

  • Nude Packing

  • 7800x2720x3000mm

  • JSIE

  • China

  • 8705400000

  • 1000units/Year

Data of complete
Overall dimension(LxWxH):7800x2720x3000mm
Curb weight:6500kg
Drive form: Torque converter
Top speed.: 30km/h
Maximum gradeability: 30°
Minimum turning radius; 5300mm
Minimum ground clearance: 380mm

Model: Quanchai 4102ZG
Rated power:78kw

Transmission case
Model: ZL-280 power shift transmission
Gear: 4forward 4back

Conventional parameters
Equipment model: JSIEBC-24

Maintain the amount of annotation
Fuel tank:75L
Total hydraulic system capacity : 75L
Oil: 16 L

Parameters of hydraulic system
Reducer: HU80-43
Pump:CBG9 2050/2032

Water supply system parameters
Water tank capacity: 500L
Water supply mode: time relay
Stiring and unloading
The double cone roller has a double helical agitating screw and a convex bottom
Dum geometry capacity 3580L Drum rotation speed: 13pm Concrete yield. 2.6CBM' 1 can
The reaction frame mounted on the heavy duty' spherical saddle can be hydraulically rotated by 290 and automatically locked by a hydraulic brake Drum rotation is achieved via a gear pump and a plunger hydraulic motor in an open circuit with a manual electrical valve in the operator's room and at the rear of the mixer. The drum rises to a horizontal position through two double acting jacks. The unloading chute is tilted by manually adjustable handle and can be rotated by 90",but cannot be synchronized with the churning drum tilting operation, Removable chutes ensure unloading directly through the hopper, Two chute extensions are provided as standard.
2.6 M³ Self-Loading Concrete Mixer Truck

2.6 M³ Self-Loading Concrete Mixer Truck 2.6 M³ Self-Loading Concrete Mixer Truck 2.6 M³ Self-Loading Concrete Mixer Truck
