Not Adjustable

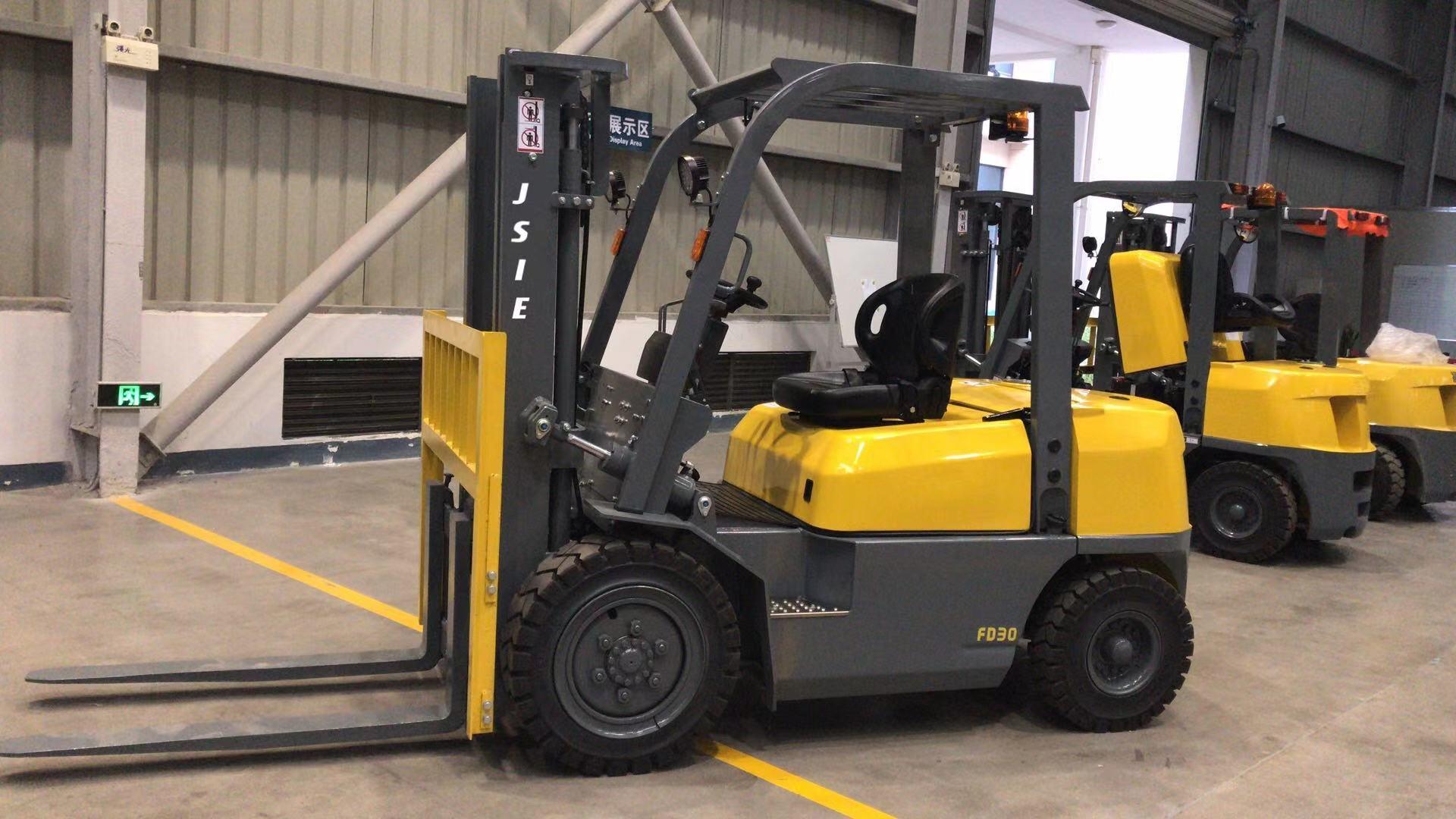

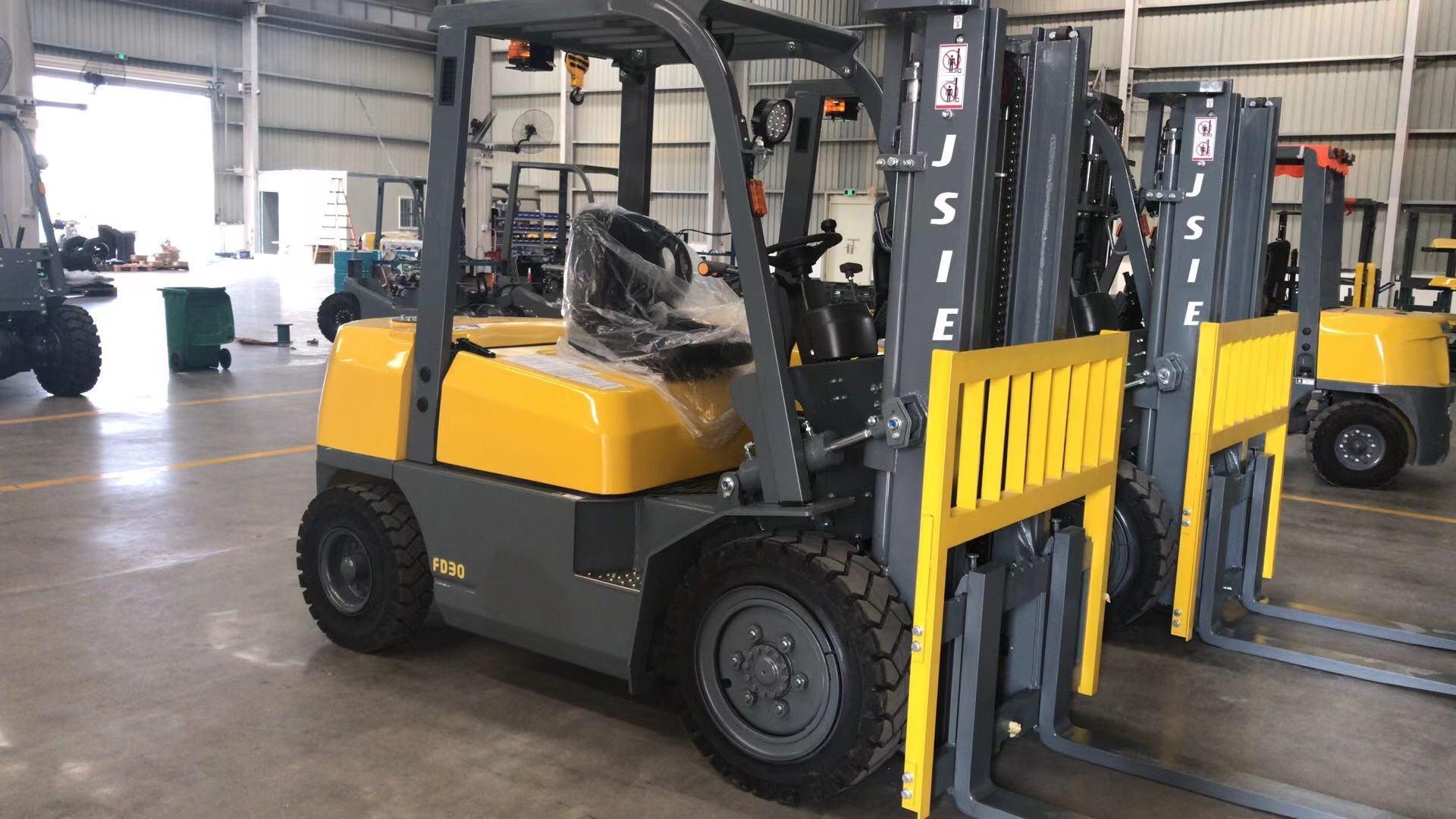

Diesel Forklift
Diesel Engine
2t-6t
Diesel
500mm
JSIE35T
3000~5000mm
New
Ideal for Warehouse Management
Nude
2760*1240*2130mm
JSIE
China
8427209000
5000units/Year
| Model | UNIT | JSIE35T | ||||
| Specifications | Power Unit | Diesel | ||||
| Operator Type | Driver/seat | |||||
| Transimission Box Type | Electronic hydraulic transmisson | |||||
| Rated Capacity | kg | 3500 | ||||
| Load Center | mm | 500 | ||||
| Max.Lifting Height | mm | 3000 | ||||
| Tire Type | Pneumatic Tyre | |||||
| Tire Number | Front | 2 | ||||
| Rear | 2 | |||||
| Tire Size | Front | 28×9-15-14PR | ||||
| Rear | 6.5-10-10PR | |||||
| Performance | Lifting Speed | Loaded | mm/s | 500 | ||
| Unloaded | 550 | |||||
| Lowering Speed | Loaded | mm/s | 480 | |||
| Unloaded | 450 | |||||
| Travelling Speed | Loaded | km/h | 19 | |||
| Unloaded | 20 | |||||
| Max.Gradeability (Loaded) | % | 21 | ||||
| Max.Drawbar Pull (Loaded) | kg | 18 | ||||
| Mast Tilting Angle (Fwd/Bwd) | deg | 6/12 | ||||
| Free Lifting Height | mm | 150 | ||||
| Turning Radius | mm | 2460 | ||||
| Dimensions | Overall Length (with fork) | mm | 2760 | |||
| Overall Width | mm | 1240 | ||||
| Overhead Guard Height | mm | 2130 | ||||
| Fork Size (LxWxT) | mm | 1220×125×50 | ||||
| Mast Height (Fork lowered) | mm | 2140 | ||||
| Battery (Voltage/Capacity) | V/Ah | 12/90 | ||||
| Truck Weight | kg | 4780 | ||||
| Fuel Tank Capacity | L | 70 | ||||
| Engine | Brand | JSIE |
| ISUZU | ||
| Model | S4S | 4JG2 | ||||
| Rated Power | kw/rpm | 35.3/2250 | 44.8/2450 | |||
| Rated torque | n-m/rpm | 169/1700 | 186/1800 | |||
| Number Of Cylinder | 4 | 4 | ||||
| Displacement | 2.49 | 3 | ||||
| Model | UNIT | JSIE35T | ||||
| Specifications | Power Unit | Diesel | ||||
| Operator Type | Driver/seat | |||||
| Transimission Box Type | Electronic hydraulic transmisson | |||||
| Rated Capacity | kg | 3500 | ||||
| Load Center | mm | 500 | ||||
| Max.Lifting Height | mm | 3000 | ||||
| Tire Type | Pneumatic Tyre | |||||
| Tire Number | Front | 2 | ||||
| Rear | 2 | |||||
| Tire Size | Front | 28×9-15-14PR | ||||
| Rear | 6.5-10-10PR | |||||
| Performance | Lifting Speed | Loaded | mm/s | 500 | ||
| Unloaded | 550 | |||||
| Lowering Speed | Loaded | mm/s | 480 | |||
| Unloaded | 450 | |||||
| Travelling Speed | Loaded | km/h | 19 | |||
| Unloaded | 20 | |||||
| Max.Gradeability (Loaded) | % | 21 | ||||
| Max.Drawbar Pull (Loaded) | kg | 18 | ||||
| Mast Tilting Angle (Fwd/Bwd) | deg | 6/12 | ||||
| Free Lifting Height | mm | 150 | ||||
| Turning Radius | mm | 2460 | ||||
| Dimensions | Overall Length (with fork) | mm | 2760 | |||
| Overall Width | mm | 1240 | ||||
| Overhead Guard Height | mm | 2130 | ||||
| Fork Size (LxWxT) | mm | 1220×125×50 | ||||
| Mast Height (Fork lowered) | mm | 2140 | ||||
| Battery (Voltage/Capacity) | V/Ah | 12/90 | ||||
| Truck Weight | kg | 4780 | ||||
| Fuel Tank Capacity | L | 70 | ||||
| Engine | Brand | JSIE |
| ISUZU | ||
| Model | S4S | 4JG2 | ||||
| Rated Power | kw/rpm | 35.3/2250 | 44.8/2450 | |||
| Rated torque | n-m/rpm | 169/1700 | 186/1800 | |||
| Number Of Cylinder | 4 | 4 | ||||
| Displacement | 2.49 | 3 | ||||
