Semi-Trailer
9850kg
7200 mm + 1310 mm + 1310 mm
1840mm
Heavy Duty
Mechanical Suspension
Skeleton
3
12+1spare
Not Self-dumping
No ABS Anti-lock Braking System
Steel
New
Carry Bulk Cement&Ash&Powder
Nude
9800*2500*3700mm(30cbm) 10800*2500*3700mm(40cbm)
JSIE
China
8716399000
2500units/Year
SPECIFICATION | Overall size | 12320mmX2500mmX4000mm | ||

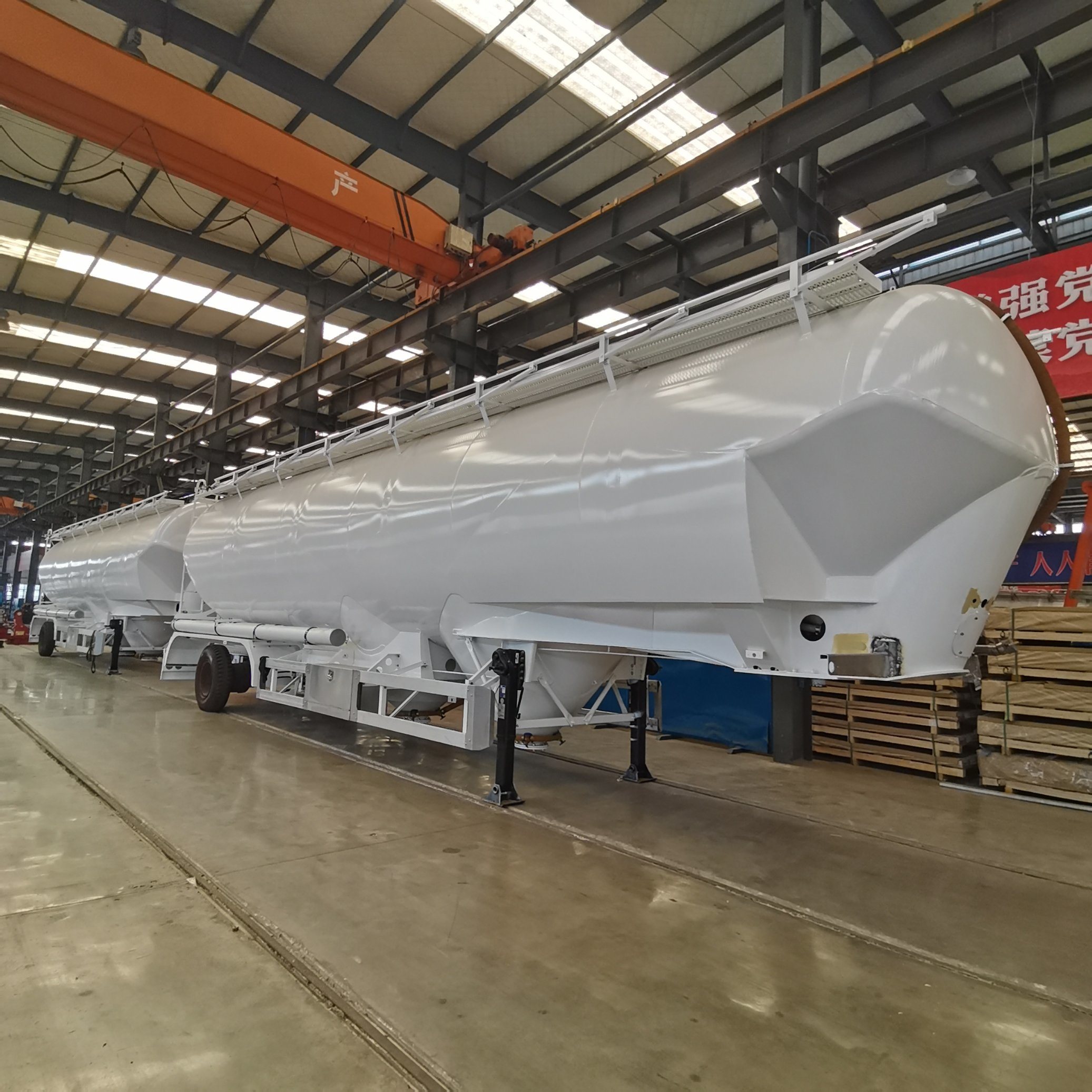

Product | Aluminium bulk flour Semi trailer | ||
| Payload | 20Ton | ||
| Volume | 40cbm | ||
Tank assembly | Front/Rear end plate | Material | Aluminum 5082 5082 |
| Front/Rear end plate | Thickness | 6mm | |
Tank body | Material | Aluminum 5082 5082 | |
| Thickness | 5mm | ||
| Test pressure | 0.2Mpa | ||
| Compartment | 3 | ||
Manhole cover | Diameter | 500mm | |
| Material | Aluminum | ||
| Number | 5pcs 5 | ||
Running mechanism / Running mechanism / | Air-charging system | Check valve | 2 inch 2 |
| Safe valve | 1.5inch 1.5 | ||
| Booster valve / | 2 inch 2 | ||
Discharging pipe | Diameter | 4 inch 4 | |
| Type | Rubber hose,2pcs ;6m length 6 | ||
Axle | Brand | Fuwa | |
| Type | 13t 13 | ||
| Number | 3pcs 3 | ||
| Rim Wheel | Type | 9.0-22.5 | |
| Number | 12 pcs 12 | ||
Tire | Brand | Triangle brand | |
| Type | 12R22.5 | ||
| Number | 12pcs | ||
| Suspension | Mechanical | ||
| King pin | Type | Bolt-In type | |
| Diameter | 2 inch 2 | ||
Brake system | Relay valve | Kangjian | |
| Brake chamber | 4 double spring brake chamber | ||
Landing gear | Brand | JOST | |
| Type | 24Ton two speed 24 | ||
Accessories | Spare tire carrier | NO | |
| Light | LED light LED | ||
| Voltage | 24v 24 | ||
| Receptacle | 7 ways(7wire harness)and quick change type 76 | ||
| Tool box | One piece1,1000x500x500mm | ||
| Paiting | Polyurethane paint&anti-rust primer&sand blasting , | ||
| Tools for trailer | Head wrench ;spare wheel crank ; | ||
 | |||
SPECIFICATION | Overall size | 12320mmX2500mmX4000mm | ||
Product | Aluminium bulk flour Semi trailer | ||
| Payload | 20Ton | ||
| Volume | 40cbm | ||
Tank assembly | Front/Rear end plate | Material | Aluminum 5082 5082 |
| Front/Rear end plate | Thickness | 6mm | |
Tank body | Material | Aluminum 5082 5082 | |
| Thickness | 5mm | ||
| Test pressure | 0.2Mpa | ||
| Compartment | 3 | ||
Manhole cover | Diameter | 500mm | |
| Material | Aluminum | ||
| Number | 5pcs 5 | ||
Running mechanism / Running mechanism / | Air-charging system | Check valve | 2 inch 2 |
| Safe valve | 1.5inch 1.5 | ||
| Booster valve / | 2 inch 2 | ||
Discharging pipe | Diameter | 4 inch 4 | |
| Type | Rubber hose,2pcs ;6m length 6 | ||
Axle | Brand | Fuwa | |
| Type | 13t 13 | ||
| Number | 3pcs 3 | ||
| Rim Wheel | Type | 9.0-22.5 | |
| Number | 12 pcs 12 | ||
Tire | Brand | Triangle brand | |
| Type | 12R22.5 | ||
| Number | 12pcs | ||
| Suspension | Mechanical | ||
| King pin | Type | Bolt-In type | |
| Diameter | 2 inch 2 | ||
Brake system | Relay valve | Kangjian | |
| Brake chamber | 4 double spring brake chamber | ||
Landing gear | Brand | JOST | |
| Type | 24Ton two speed 24 | ||
Accessories | Spare tire carrier | NO | |
| Light | LED light LED | ||
| Voltage | 24v 24 | ||
| Receptacle | 7 ways(7wire harness)and quick change type 76 | ||
| Tool box | One piece1,1000x500x500mm | ||
| Paiting | Polyurethane paint&anti-rust primer&sand blasting , | ||
| Tools for trailer | Head wrench ;spare wheel crank ; | ||
| |||
