Semi-Trailer
50t-120t
8400 mm + 1310 mm
2050mm
Heavy Duty
Mechanical Suspension
Lowbed
2/3
8+1spare
Not Self-dumping
No ABS Anti-lock Braking System
Steel
New
Carry Containers, Bulk Cargo, Equipments
Nude
(12000-16000)*(2800-3200)*2500mm
JSIE
China
8716391000
3000units/Year

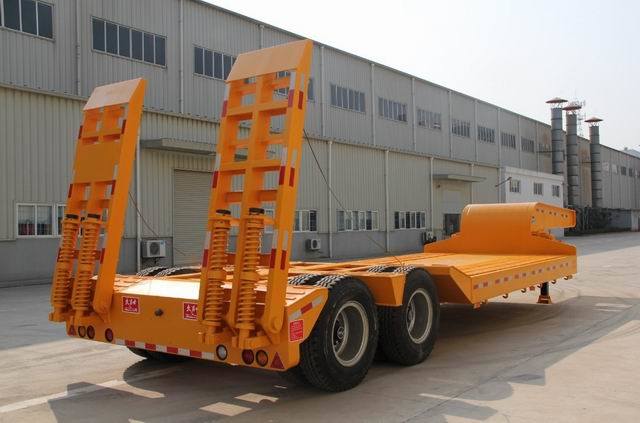

| 12M-18M Low bed Semi-trailer | |
| Feature: | Carry containers, bulk cargo, equipments |
| Dimension(L*W*H): | (12000-16000)*(2800-3200)*2500mm |
| Main frame: | Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process |
| Model: | FTW9600TDP |
| No. of axle: | 2/3/4 |
| Payload: | 50Ton-120Ton |
| Kingpin: | The world-famous JOST brand bolt-in/welded type 3.5"/2" |
| Landing gear: | JOST brand two-speed manual operation 19" |
| Tire size: | 11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5 |
| Rim size: | 8.25*22.5,9.00*22.5,11.75*22.5 |
| Axle: | Original BPW-12T/ FUWA-13T |
| Suspension | Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension |
| Brake system: | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
| Container locks | 12(for 1x20GP,2X20GP,1X40HQ) |
| Painting: | S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting |
| Accessory: | One tool box; one set of standard tool |
| We can build the trailers according to customer's design and requirement | |
| 12M-18M Low bed Semi-trailer | |
| Feature: | Carry containers, bulk cargo, equipments |
| Dimension(L*W*H): | (12000-16000)*(2800-3200)*2500mm |
| Main frame: | Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process |
| Model: | FTW9600TDP |
| No. of axle: | 2/3/4 |
| Payload: | 50Ton-120Ton |
| Kingpin: | The world-famous JOST brand bolt-in/welded type 3.5"/2" |
| Landing gear: | JOST brand two-speed manual operation 19" |
| Tire size: | 11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5 |
| Rim size: | 8.25*22.5,9.00*22.5,11.75*22.5 |
| Axle: | Original BPW-12T/ FUWA-13T |
| Suspension | Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension |
| Brake system: | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
| Container locks | 12(for 1x20GP,2X20GP,1X40HQ) |
| Painting: | S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting |
| Accessory: | One tool box; one set of standard tool |
| We can build the trailers according to customer's design and requirement | |
