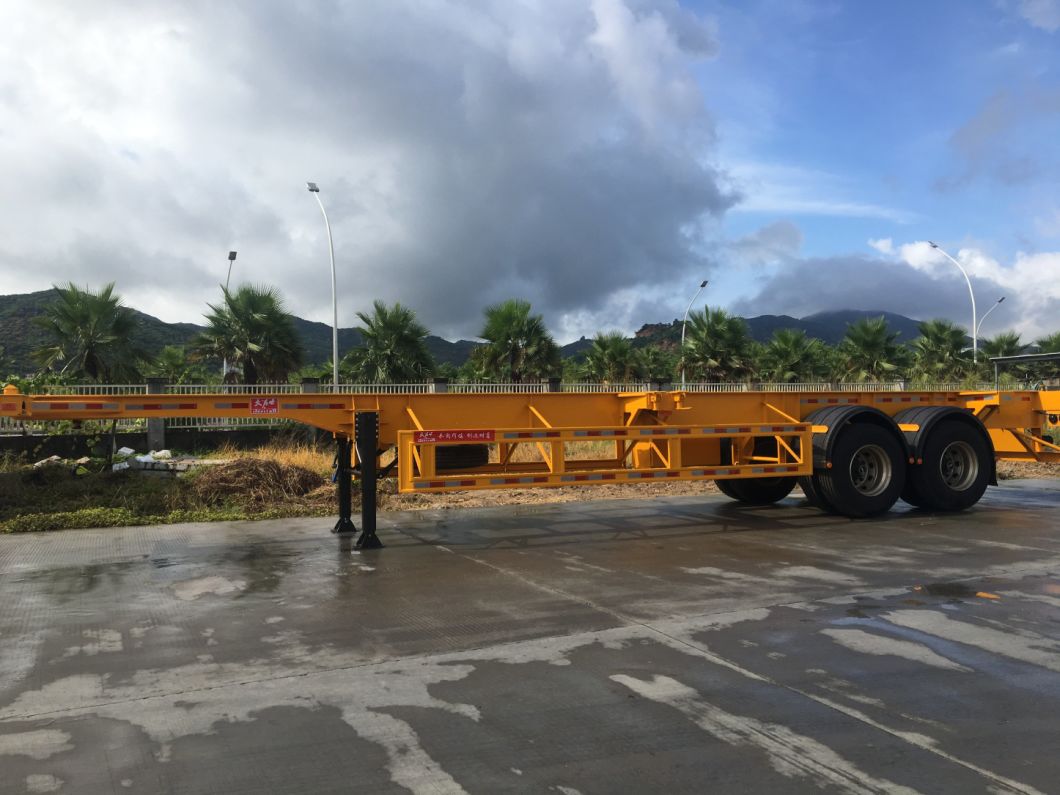

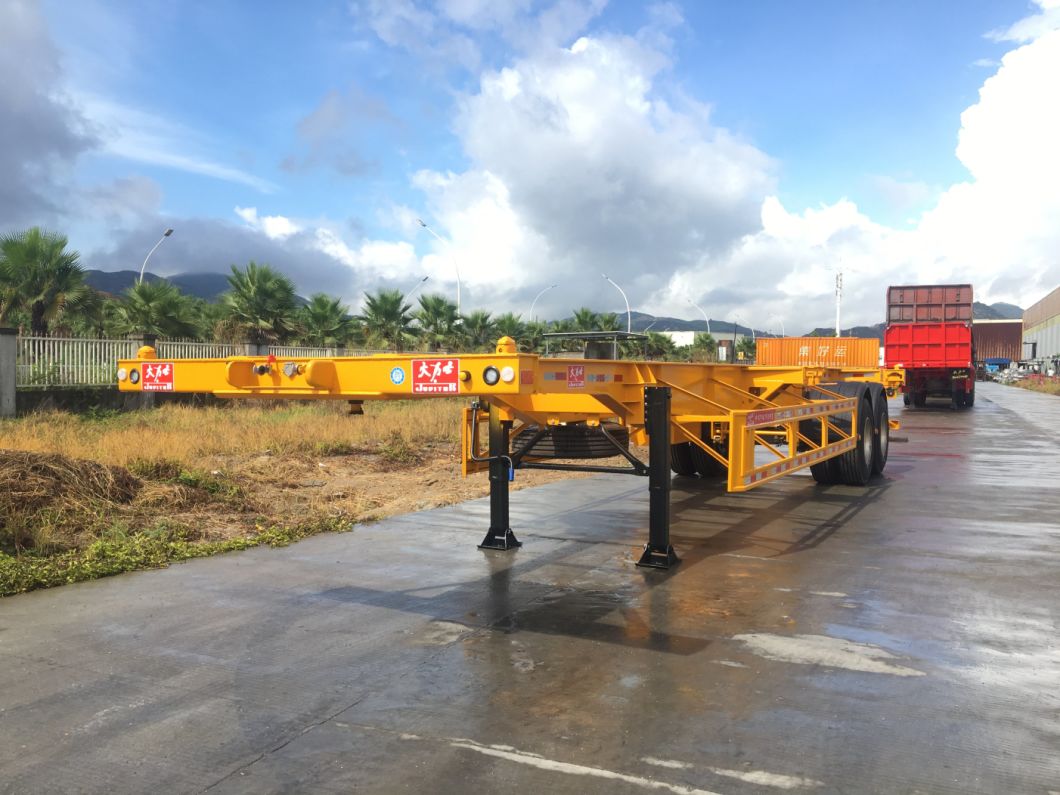

40FT Tri-Axle Skeleton Semi Trailer

Quantity:
  • Semi-Trailer
  • 30T
  • 7200 mm + 1310 mm+ 1310 mm
  • 1840mm
  • Heavy Duty
  • Mechanical Suspension
  • FTW9402TJZG
  • Skeleton
  • 3
  • 12+1spare
  • Not Self-dumping
  • No ABS Anti-lock Braking System
  • Steel
  • New
  • Carry 1X20FT/1X40FT/2X20FT Container
  • Nude
  • 12420*2480*1540mm
  • JSIE
  • China
  • 8716391000
  • 3000units/Year
SPECIFICATION
40FT Skeleton semi trailer
Feature: Carry 1X20FT,1X40FT,or 2X20FT container
Dimension(L*W*H): 12420*2480*1540mm
Main frame: Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
Model: JS9370TJZG JS9350TJZG
No. of axle: 3 2
Payload(kgs): 50000 40000
Tare weight(kgs): 5600 4500
Kingpin: The world-famous JOST brand bolt-in/welded type 3.5"/2"
Landing gear: JOST brand two-speed manual operation 19"
Tire size: 11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5
Rim size: 8.25*22.5,9.00*22.5,11.75*22.5
Axle: Original BPW-12T/ FUWA-13T
Suspension Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension
Brake system: Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Container locks 12(for 1x20GP,2X20GP,1X40HQ)
Painting: S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting
Accessory: One tool box; one set of standard tool
We can build the trailers according to customer's design and requirement
