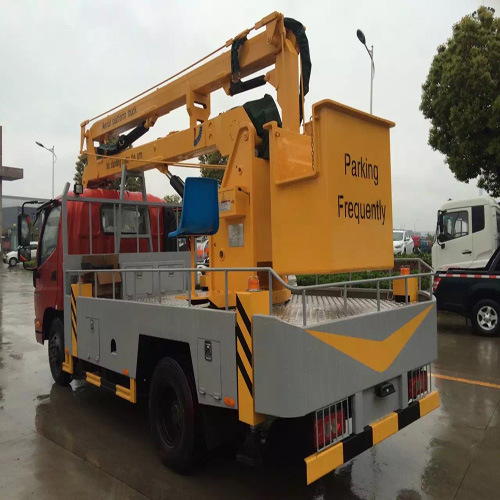

4X2 Aerial Working Truck/Truck Mounted Aerial Work Platform

Quantity:
  • Folded Arm

  • Euro 4

  • 120HP

  • 250kg

  • Diesel

  • Automatic

  • 4x2

  • New

  • Nude

  • 7400× 1980× 3100mm

  • JSIE

  • China

  • 8705909990

  • 3000units/Year

TECHNICAL SPECIFICATION
SER ITEM PARAMETER UNIT DATA REMARK
1 WHOLE
VEHICLE
VEHICLE MODEL JSIEW5050JGKQ4
MANUFACTURE DATE 2020
OVERALL DEMENSION MM 7400×1980×3100
CURB WEIGHT KG 5080
GVW KG 5405
MAX GRADABILITY WHEN FULL LOADING DEG 32°
MAX SPEED KM/H 105
FRONT/REAR HANGING MM 1015/2180
CLOSE/DEPARTURE ANGLE DEG 24/12
LEAF SPRING PCS 8/6+5
DRIVE WHEEL 4*2
2 CHASSIS CHASSIS MODEL QL1070A1HWY(ISUZU)
MANUFACTURER ISUZU Motors Co.,Ltd.
MANUFACTURE DATE 2020
POWER STEERING Equipped
WHEELBASE 3360
FRONT AXLE 2.5T
REAR AXLE 4.8T
TYRE SPECIFICATION 7.00R-16
NO OF TYRES PCS 6+1 spare tyre
3 ENGINE ENGINE MODEL 4KH1-TCG40
MANUFACTER ISUZU Diesel Motors Co.,Ltd.
ENGINE HORSEPOWER HP 120
DISPLACEMENT ML 2999
EMISSION STANDARD
Euro IV
ENGINE DETAILS MORE 4 CYLINDERS
ELECTRICICAL INJECTION
WATERCOOLED&TURBOCHARGED
NO.OF GEARS 5 forward gears and 1 reverse
GEARBOX MODE MSB of ISUZU
RATIO 5.016/2.524/1.489/1/0.713/R:.783
5 UPPER BRAND JSIE
MANUFACTER Xiamen Justsun Intelligent Co.,Ltd.
LEGS PCS 4
MAX WORKING HEIGHT M 16
LOADING CAPACITY KG 250
BOOM LIFTING WEIGHT KG 1000
MAX LIFTING HEIGHT M 6.5
MAX OUTREACH M 6
ROTATING SPEED r/min 0~2
ROTATION ANGLE DEG 360°
MAIN BOOM OUTREACHING TIME S 50
SECONDAR BOOM OUTREACHING TIME S 40
THIRD BOOM OUTREACHING TIME S 30
THE WHOLE BOOM OUTREACHING TIME S 30
6 CAB MODEL ISUZU 600P
SEATS 3+2
COLOR According to you
A/C Equipped
OTHERS With FM RADIO,Spare tire stents and so on
4X2 Aerial Working Truck/Truck Mounted Aerial Work Platform
