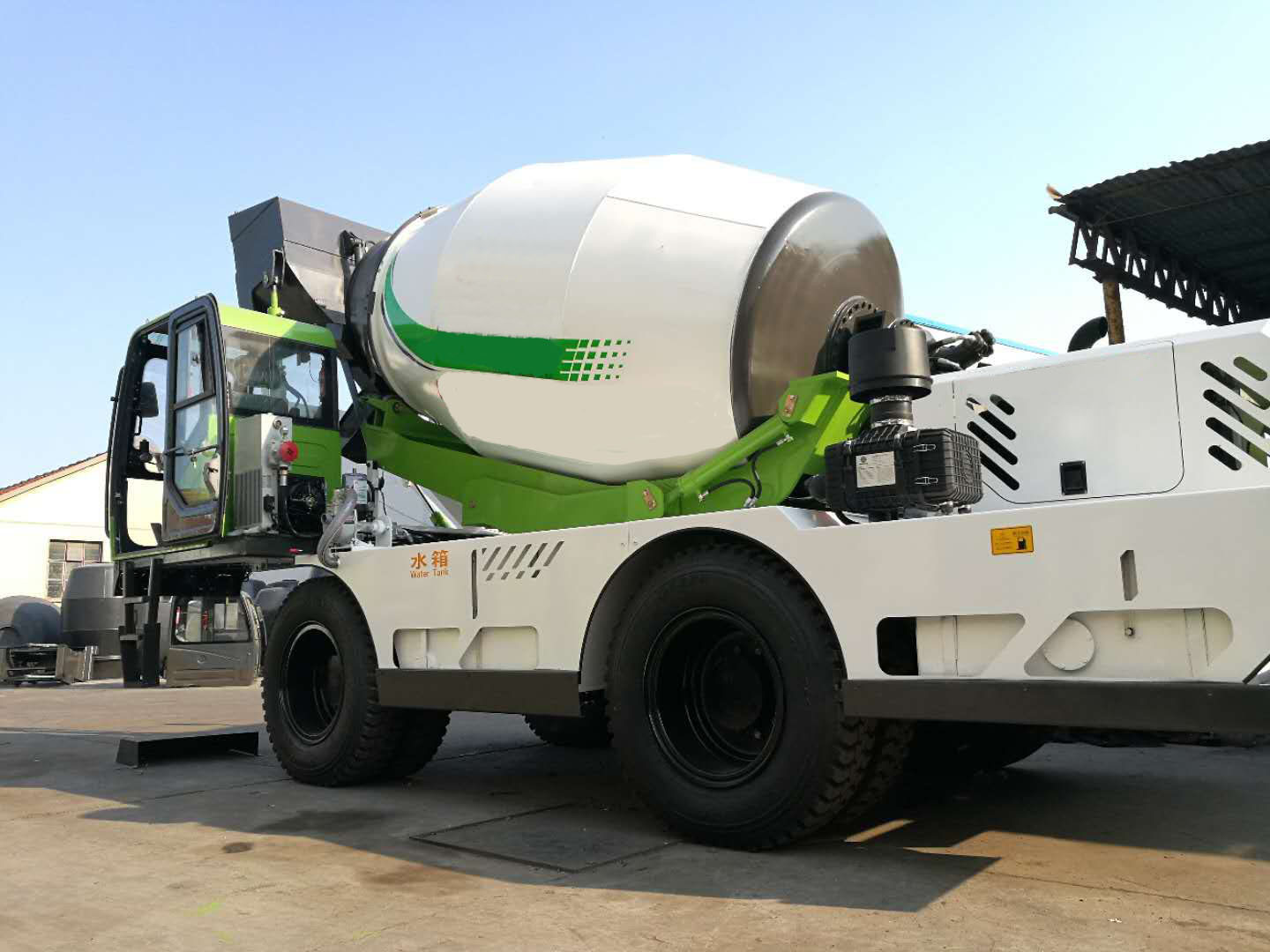

6.5 M³ Self-Loading Mixer Truck

Quantity:
  • Concrete Mixing Truck

  • Wet

  • Hydraulic

  • Rotor Type

  • 25m²/h

  • 4350mm

  • JSIEBC-60

  • Without

  • ISO9001: 2000

  • New

  • White

  • Nude Packing

  • 8450x3050x3860mm

  • JSIE

  • China

  • 8705400000

  • 1000units/Year

Data of complete
Overall dimension(LxWxH):8450x3050x3860mm
Wheelbase:2850mm
Curb weight:12520kg
Drive form: Torque converter
Top speed.: 40km/h
Maximum gradeability:30°
Minimum turning radius;4800mm
Minimum ground clearance:350mm
.
Engine
Model: Weichai daoizz 6105 pressurized
Rated power:92kw

Transmission case
Model: ZL-315 power shift transmission
Gear: 4 forward 4 back
Conventional parameters
Equipment model: JSIEBC-60

Maintain the amount of annotation
Fuel tank:370L
Total hydraulic system capacity : 278L
Oil: 16L

Parameters of hydraulic system
Reducer: KY07-5-J
Pump:Parker pump
Motor:HAA2FM56/ 61W-VTD527

Water supply system parameters
Water tank capacity: 1465L
Water supply mode: time relay

Stiring and unloading
The double cone roller has a double helical agitating screw and a convex bottom
Dum geometry capacity .9000L Drum rotation speed:.16.5 pm Concrete yield. 6.5m³ 1 can
The reaction frame mounted on the heavy duty' spherical saddle can be hydraulically rotated by 290 and automatically locked by a hydraulic brake Drum rotation is achieved via a gear pump and a plunger hydraulic motor in an open circuit with a manual electrical valve in the operator's room and at the rear of the mixer. The drum rises to a horizontal position through two double acting jacks. The unloading chute is tilted by manually adjustable handle and can be rotated by 90" , but cannot be synchronized with the churning drum tilting operation, Removable chutes ensure unloading directly through the hopper, Two chute extensions are provided as standard.

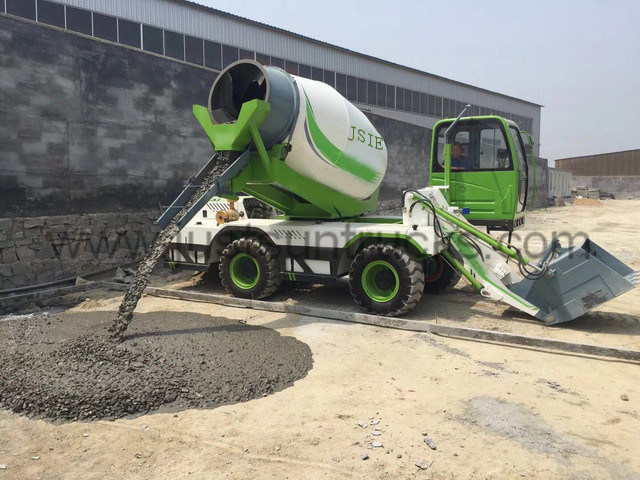

6.5 M³ Self-Loading Mixer Truck

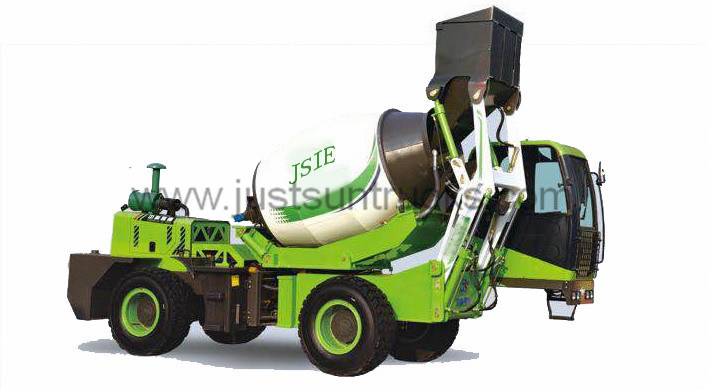

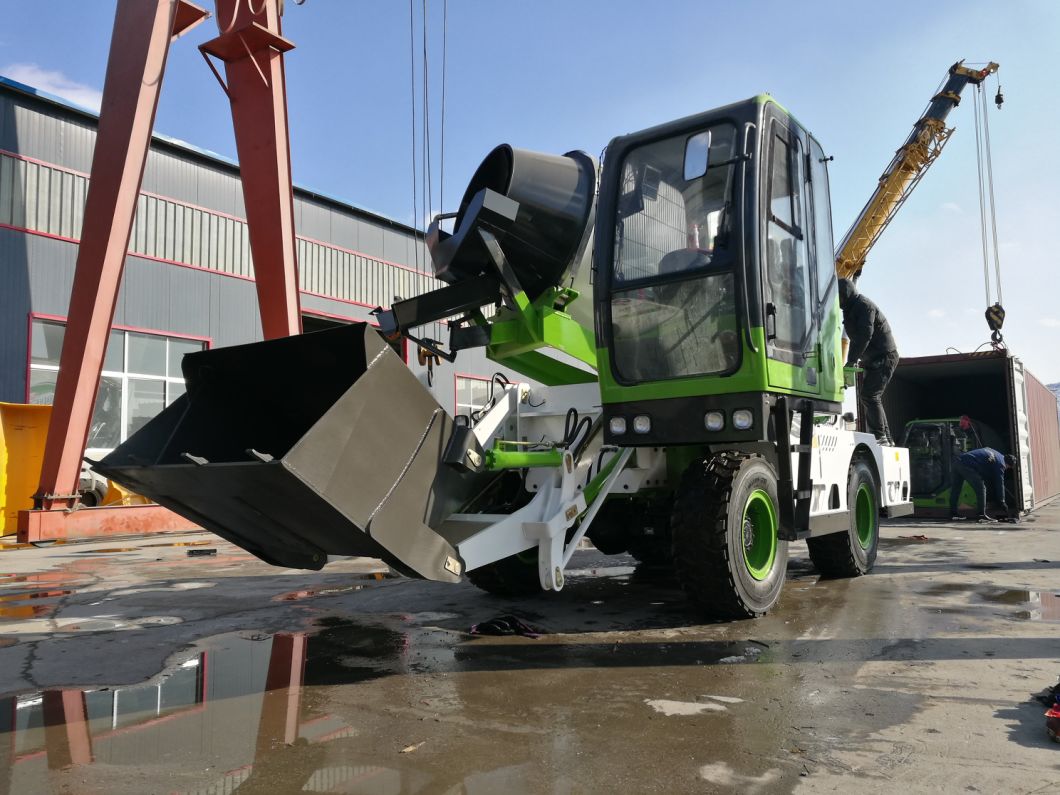

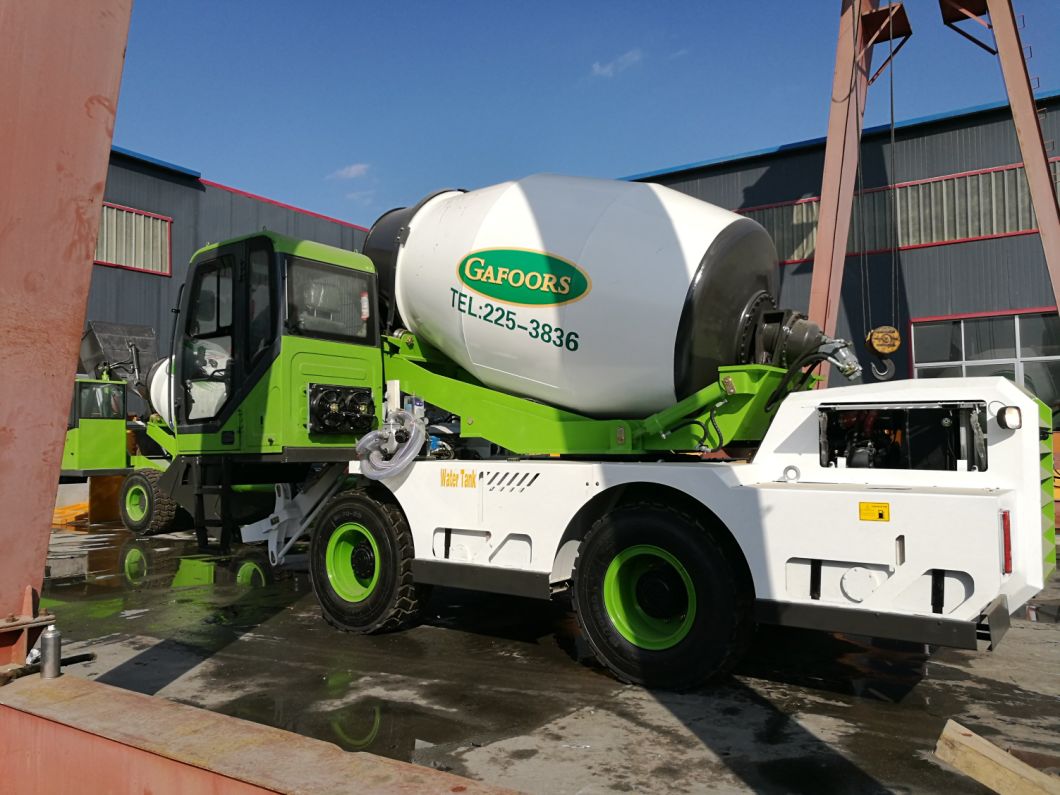

6.5 M³ Self-Loading Mixer Truck 6.5 M³ Self-Loading Mixer Truck 6.5 M³ Self-Loading Mixer Truck
