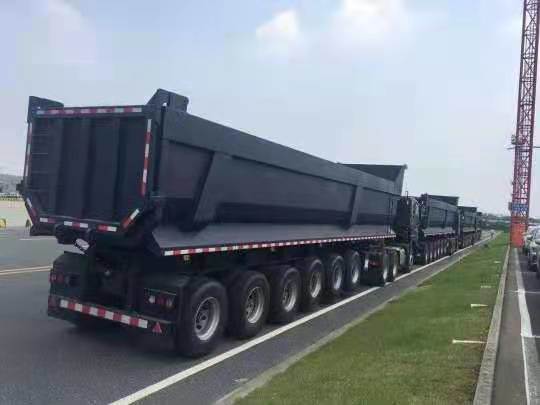

6 Axle 4 Axle 80ton U Shape Rear Dump Box Tipper Truck Semi Trailer

Quantity:
  • Semi-Trailer

  • 50t-60t

  • 5615 mm + 1310 mm+1310mm

  • 1840mm

  • Heavy Duty

  • Mechanical Suspension

  • Flatbed

  • 3

  • 12+1spare

  • Self-dumping

  • No ABS Anti-lock Braking System

  • Steel

  • New

  • Carry Sand,&Stone,&Mine& Garbage and So on

  • Nude

  • 9700*2480*3300mm (27CBM) 10100*2480*3300mm(33CBM)

  • JSIE

  • China

  • 8716399000

  • 5000units/Year

SPECIFICATION
27cbm-40cbm 3-axle tipper semi-trailer
Feature: Carry Sand, Stone, Mine, Garbage and so on
Dimension(L*W*H): 9700*2480*3300mm (27CBM)
10100*2480*3300mm(33CBM)
Main frame: Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
The thickness of body Side wall: 6mm
Bottom floor: 8mm
Model: JS9600TJZT
Capacity(CBM): 27CBM-40CBM
Tare weight(kgs): 9,300kgs(27cbm)
10,500kgs(33cbm)
Kingpin: The world-famous JOST brand bolt-in/welded type 3.5"/2"
Landing gear: JOST brand two-speed manual operation 19"
Tire size: 11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5
Rim size: 8.25*22.5,9.00*22.5,11.75*22.5
Axle: Original BPW-12T/ FUWA-13T
Suspension Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension
Brake system: Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Hydraulic system Hyva brand
Painting: S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting
Accessory: One tool box; one set of standard tool
We can build the trailers according to customer's design and requirement
