Carbon Steel Oil Tank Fuel Tanker Semi Truck Trailer with Adr

Quantity:
  • Semi-Trailer

  • Heavy Duty

  • Not Self-dumping

  • No ABS Anti-lock Braking System

  • Steel

  • New

  • Carry Fuel Fuel, &Oil, &Diesel& Drink Water& Milk

  • Nude

  • 11000*2500*3700mm(30, 000L)

  • JSIE

  • China

  • 8716399000

  • 2500units/Year

SPECIFICATION
30,000L-45,000L 3-axle Tank Semi-trailer
Feature: Carry Fuel, Oil, Diesel, Drink water, Milk, Beer and other chemical liquid
Dimension(L*W*H): 11000*2500*3700mm(30,000L)
11700*2500*3750mm(40,000L)
Model JS9350GRY
Material: Carbon Steel Stainless Steel Aluminum
Compartment: 3-6
Capacity(kgs): 30,000L-45,000L
Tare weight(kgs): 10,000-11,000kgs 10,000-11,000kgs 6,000-7,000kgs
Kingpin The world-famous JOST brand bolt-in/welded type 3.5"/2"
Landing gear JOST brand two-speed manual operation 19"
Tire size 11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5
Rim size 8.25*22.5,9.00*22.5,11.75*22.5
Axle Original BPW-12T/ FUWA-13T
Leafs spring Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension
Brake system One unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector.
Manhole: Aluminum alloy ø500mm(20") manhole with aluminum alloy cover; with breather valve;
Discharge Valve Aluminum alloy discharge valve with cover
Foot Valve Pneumatic control DN80 aluminum alloy foot valves
Pneumatic Control system 1set Pneumatic Control combined switch
1unit emergency switch
Discharge Hose 2 units 3"×6M factory PVC hose with quick coupling on both ends
Vapor Recovery & Overfill system Optional

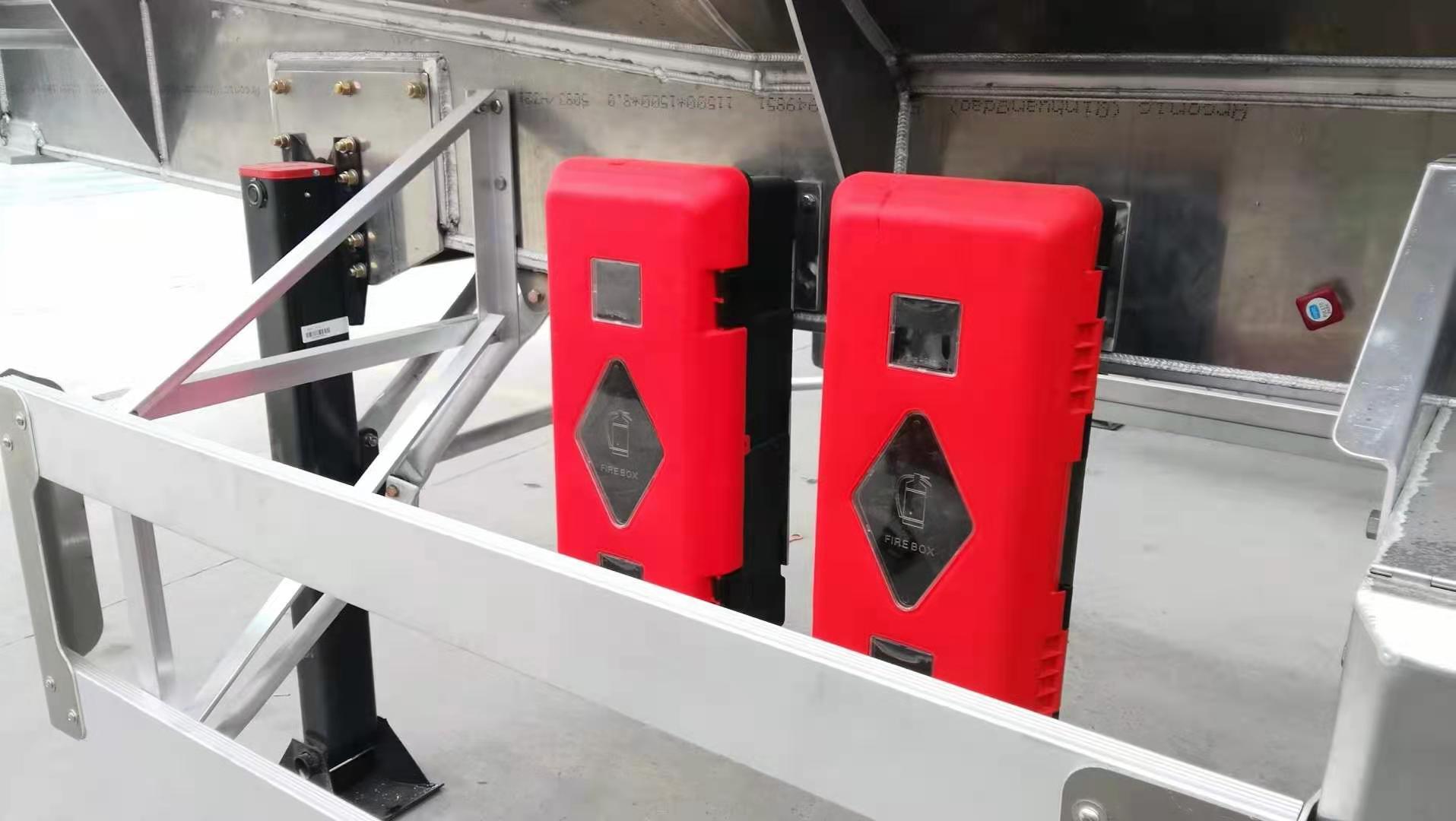

Fire Extinguisher Carrier 2 units at the left of rear of tanker, include 2 units 8kg dry powder type fire extinguisher inside
Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Prime & Topcoat painting S.A.2.5 standard sandblasting ;Zinc-rich & Polyurethane painting
We can build the trailers according to customer's design and requirement

Carbon Steel Oil Tank Fuel Tanker Semi Truck Trailer with Adr
Carbon Steel Oil Tank Fuel Tanker Semi Truck Trailer with Adr
Carbon Steel Oil Tank Fuel Tanker Semi Truck Trailer with Adr
Carbon Steel Oil Tank Fuel Tanker Semi Truck Trailer with Adr
