Customized 3axle Heavy Duty Lowbed Semi Trailer

Quantity:
  • Semi-Trailer

  • 50t-120t

  • 8400 mm + 1310 mm

  • 2050mm

  • Heavy Duty

  • Mechanical Suspension

  • Lowbed

  • 2/3

  • 8+1spare

  • Not Self-dumping

  • No ABS Anti-lock Braking System

  • Steel

  • New

  • Carry Containers, Bulk Cargo, Equipments

  • Nude

  • (12000-16000)*(2800-3200)*2500mm

  • JSIE

  • China

  • 8716391000

  • 3000units/Year

SPECIFICATION
12M-18M Low bed Semi-trailer
Feature: Carry containers, bulk cargo, equipments
Dimension(L*W*H): (12000-16000)*(2800-3200)*2500mm
Main frame: Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
Model: FTW9600TDP
No. of axle: 2/3/4
Payload: 50Ton-120Ton
Kingpin: The world-famous JOST brand bolt-in/welded type 3.5"/2"
Landing gear: JOST brand two-speed manual operation 19"
Tire size: 11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5
Rim size: 8.25*22.5,9.00*22.5,11.75*22.5

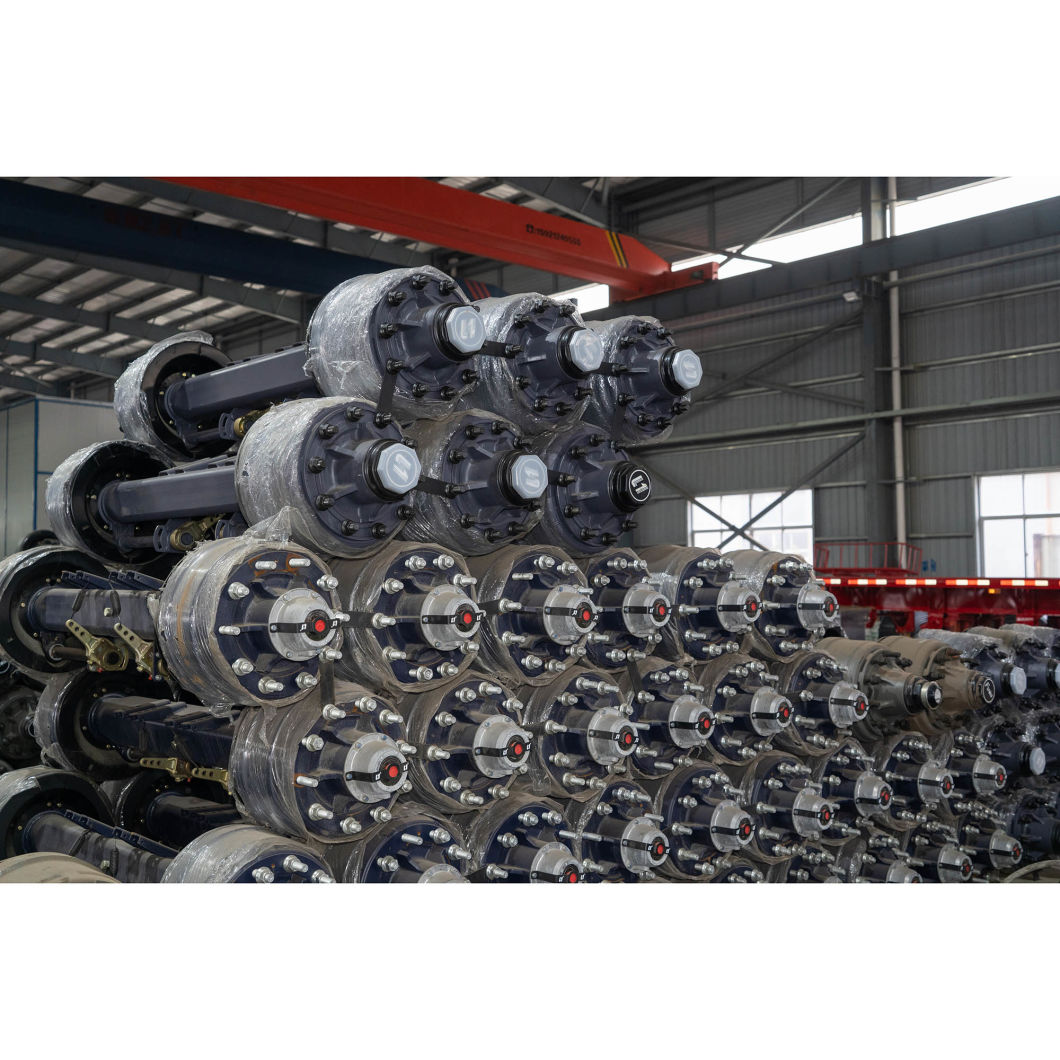

Axle: Original BPW-12T/ FUWA-13T
Suspension Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension
Brake system: Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Container locks 12(for 1x20GP,2X20GP,1X40HQ)
Painting: S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting
Accessory: One tool box; one set of standard tool
We can build the trailers according to customer's design and requirement

Customized 3axle Heavy Duty Lowbed Semi Trailer
Customized 3axle Heavy Duty Lowbed Semi Trailer
Customized 3axle Heavy Duty Lowbed Semi Trailer
Customized 3axle Heavy Duty Lowbed Semi Trailer
Customized 3axle Heavy Duty Lowbed Semi Trailer
