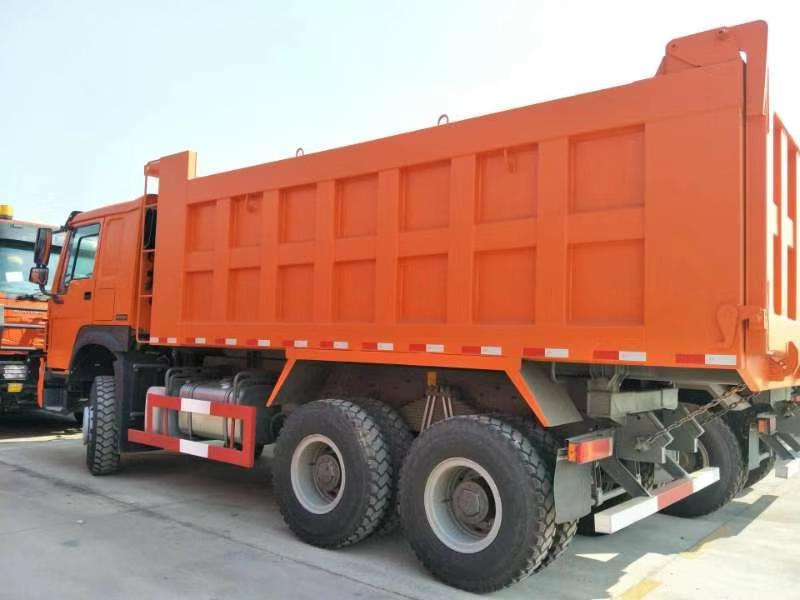

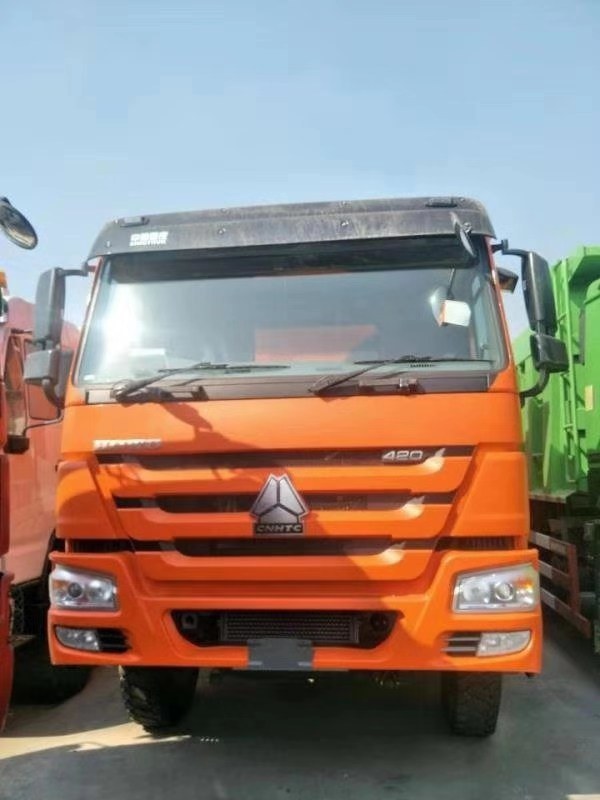

HOWO Sinotruk 8*4 Dump Truck with 60 Tons Capacity

SPECIFICATION

Dimension(Lx W xH)(unloaded)(mm)

9745×2496×3450

Cargo body size (LxWxH) (mm)

6800x2300x1500 Sand body,Front lifting, Bottom 8 mm, Side 6 mm

Approaching angle/Departure angle(°)

19/24

Overhang(front/rear) (mm)

1500/1625

Wheel base (mm)

1800+3200+1350

Max speed(km/h)

75

Curb weight(kg)

15400

Engine(Steyr technology, made in China)

Model

WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection

Fuel type

Diesel

Power, max(kw/rpm)

371HP

Emission

EUROII

Fuel tanker capacity(L)

300L aluminum oil tank

Transmission

Model

HW19710, 10 speeds forward and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Steering system

Model

ZF8118

Front axle

HF9

Rear axle

HC16

Tire

12.00R20

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

HOWO 76 New face cab(one bed,with air conditioner), all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.
