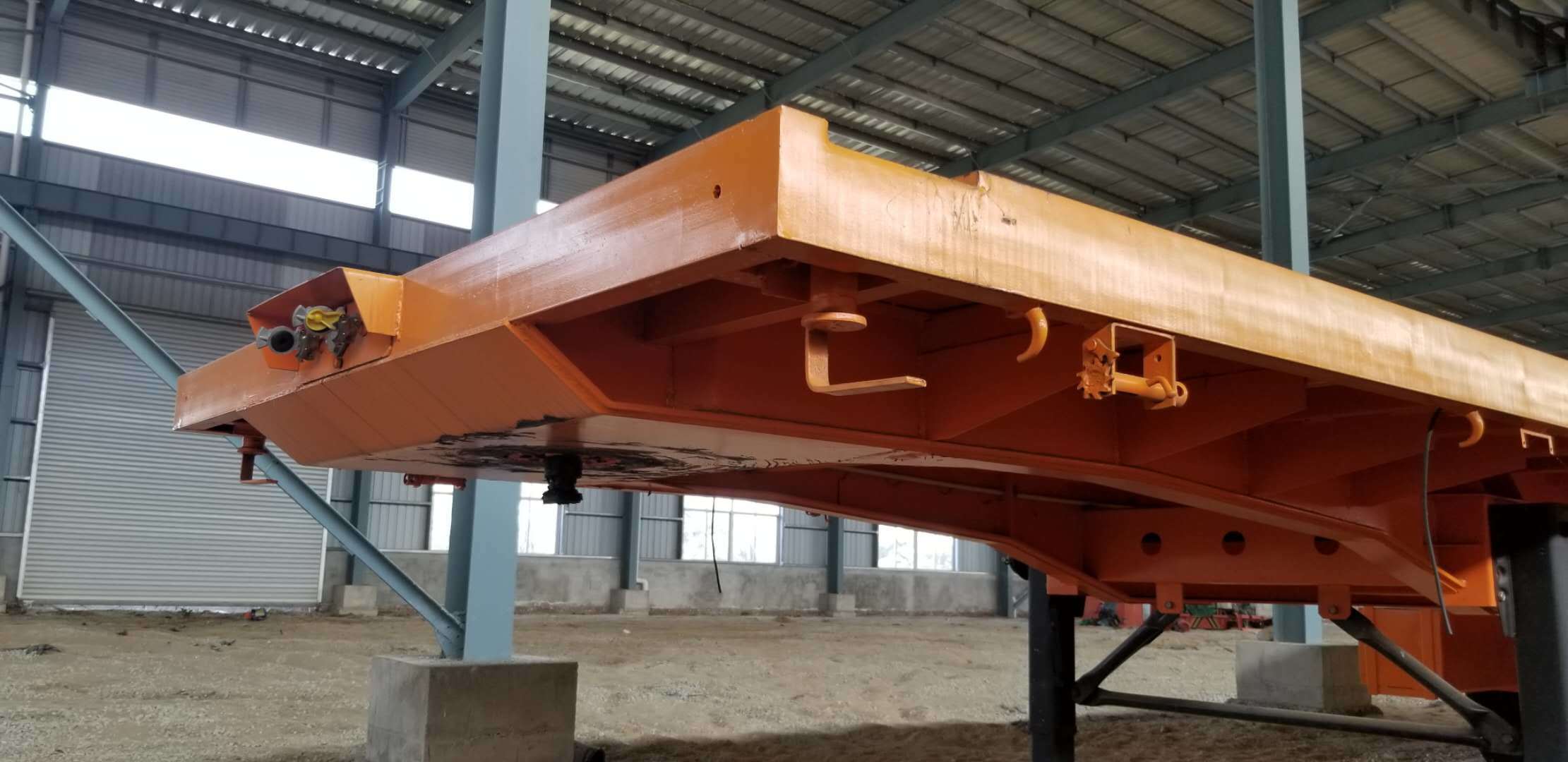

Hot Product 12.4m Flatbed Semi Trailer with 3-Axle

Quantity:
  • Semi-Trailer

  • 40t

  • 7200 mm + 1310 mm + 1310 mm

  • 1840mm

  • Heavy Duty

  • Mechanical Suspension

  • Flatbed

  • 2/3

  • 12+1spare

  • Not Self-dumping

  • No ABS Anti-lock Braking System

  • Steel

  • New

  • Designed for Stevedoring and Transporting

  • Nude

  • 12420*2480*1570mm

  • JSIE

  • China

  • 8716391000

  • 3000units/Year

SPECIFICATION
40FT Tri-Axle Flatbed semi trailer
Feature: Carry 1X20FT,1X40FT,or 2X20FT container
Dimension(L*W*H): 12420*2480*1570mm
Main frame: Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
Model: FTW9400TJZP
No. of axle: 3
Payload(kgs): 50000
Tare weight(kgs): 7200
Kingpin: The world-famous JOST brand bolt-in/welded type 3.5"/2"
Landing gear: JOST brand two-speed manual operation 19"
Tire size: 11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5
Rim size: 8.25*22.5,9.00*22.5,11.75*22.5
Axle: Original BPW-12T/ FUWA-13T
Suspension Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension
Brake system: Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Container locks 12(for 1x20GP,2X20GP,1X40HQ)
Painting: S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting
Accessory: One tool box; one set of standard tool
We can build the trailers according to customer's design and requirement
