New
30-40m
25ton
3
Four-Arm
Straight Arm

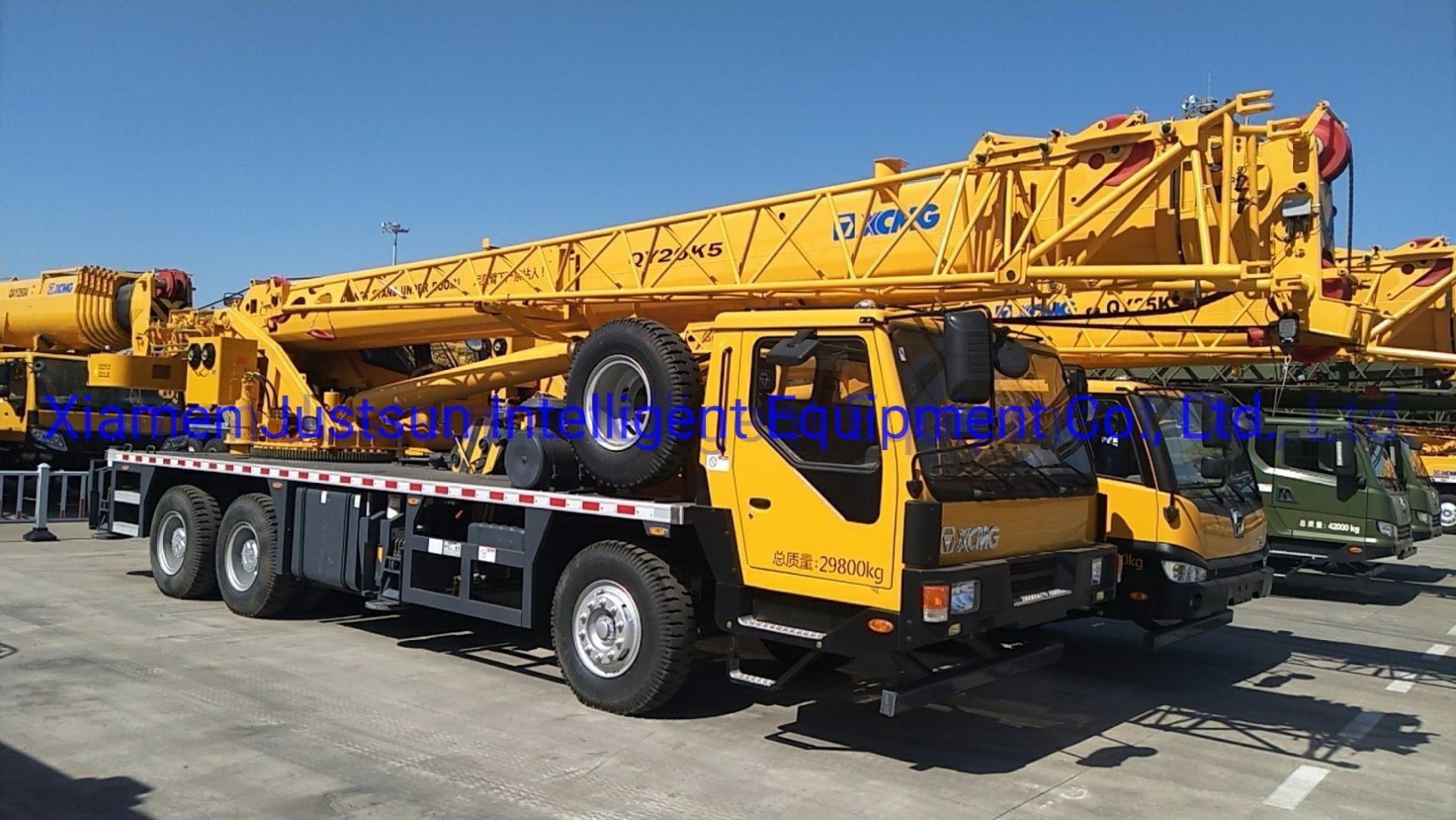

QY25K-2
Widely Used for Lifting Operation and Installation
Nude
12650*2500*3380mm
JSIE
China
87051021
5000units/Year
Series | Model | specification | Item | Technical Parameters |
QY Series Crane truck | QY25K-2 | Power System Spec. | Supplier | Weichai(Optional) |
Emission standard | Euro 4 | |||
Model | WD615.329SC8DK280Q3 | |||
Rated power | 213kw | |||
Rated torque | 1160N.m | |||
Dimensions | L*W*H | 12650*2500*3380mm | ||
Wheel base | 4425+1350mm | |||
Load capacity | Total weight | 29400kg | ||
Axle load(front axle/rear axle) | 6200/23200kg | |||
Max.traction(Standard) | 85kN | |||
Operating Device Spec. | Max rated lifting weight | 25000kg | ||
Max lifting height of basic arm | 1010kN·m | |||
Max lifting height of the longest boom | 34.19m | |||
Bboom full extension/extract time | 30S | |||
Max driving speed | 75km/h | |||
Min stable driving speed | 2.9km/h | |||
Max gradebility | 30° | |||
Ground clearance | 275mm | |||
Brake distance | 10m | |||
Min. turning diameter | 21.5m | |||
Tank Capacity | Fuel Consumption of 100-kilometer | 37L |
