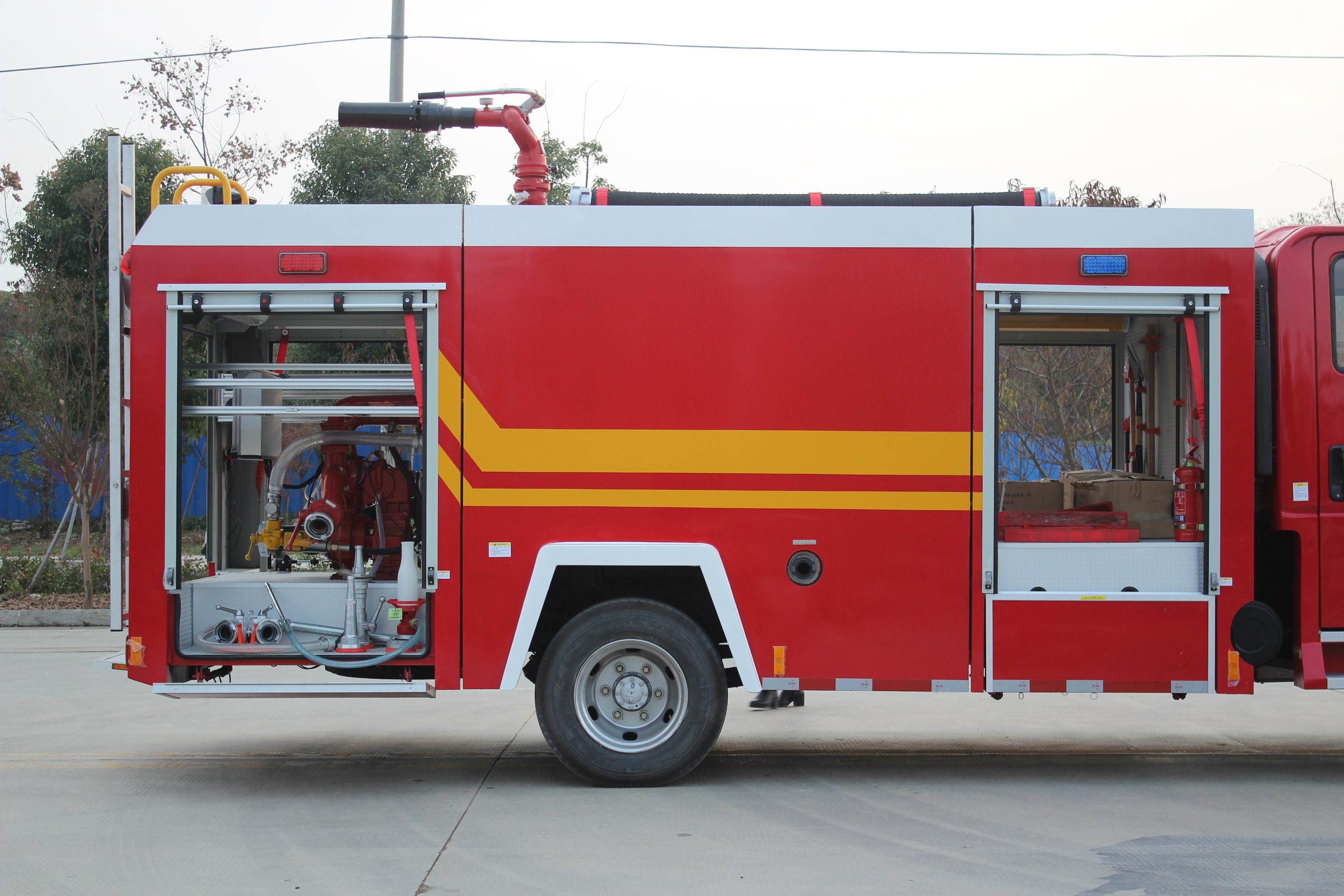

Isuzu 4*2 Fire Truck with 2000L-4000L Water Tank

Quantity:



Inquire Add to Basket

Transmission Type:
Automatic
Power:
Diesel
Load Capacity:
11-20t
Emission Standard:
Euro 5
Drive Wheel:
4×2
Engine Capacity:
4-6L
Model NO.:
ISUZU 100P
Seats:
≤5
Horsepower:
98HP
Tire Certification:
ECE, GCC, ISO, DOT
Tire Design:
Radial
Dumping Type:
Front Lifting Style
Condition:
New
Driving Direction:
Left Hand Driving
Transport Package:
Nude
Specification:
6500*2300*3000 mm
Trademark:
JSIE
Origin:
China
HS Code:
8704223000
Production Capacity:
2000units/Year

Product Description

Technical Specification

Chassis:

› Type: ISUZU 100P chassis
› Drive system: 4x2 Left hand drive
› Engine: 98 HP 4JB1CN Euro4
› Gearbox: Manual MSB 5-speed
› Tyre: 7.00R16
› Crew cabin: Single cabin
› Seats capacity: 2 person

Extinguishing agent tank:

› Water tank: 4,000 L
› Tank material: High quality carbon stell plate
› Tank Manhole: DN500mm

Extinguishing system:

› Fire pump: CB10/20 with 20L/s at 1.0MPa, normal pressure centrifugal pump
› Fire monitor: PS20
› Monitor throw: Water throw≥50meter,
› Rotation: 360º rotation; elevation: 0-80°, depression -10°
› Water Pumper Inlet Diameter 1*100 mm
› Water Pumper Outlet Diameter 2*65 mm

Proportioning system:

› Type: PH48
› Normal pressure proportioning ratio: 6%

Equipment compartment:

› LED lighting in equipment compartment
› Each compartment closed by light aluminum roller shutter.
› Including customer-specific additional equipment
› According to human body engineering principle design all kinds of equipment frames
› 1-2 action can take any equipment standing on the ground or pedal

Painting:

› Fire Red: R03 Fire Red
› Logo: According to customer wish
› Operation Manual: English or Appointed langauge

Dimensions & weight:

› L × W × H =6500*2300*3000 mm
› Permissible total weight: 7,300 kg

FREE Fire accessories

No	Item	Photo	No	Item	Photo
1	Water Suction Pipe (Ø100)		12	Extinguisher
2	Water strainer (Ø125)		13	Fire Fighting Barrel
3	Water segregator (Ø80-65/65)		14	DC switching gun
4	Water collector (Ø125-65/65)		15	DC blossom water
5	Fire hose (Ø65* 20m)		16	Air foam gun
6	Fire hose (Ø80* 20m)		17	Fireman's axe
7	Fast joint KJ65/80		18	Fire Axe
8	Hose protector		19	Fire Shovel
9	Hose Hoist		20	First Aid Kit
10	Ground Hydrant-wrench		21	Jacklight For Working (10Hours, 500m)
11	Underground Hydrant-wrench		22	Suction pipe wrench
With above equipment, your fire vehicle can put into fire-fighting immediately!
