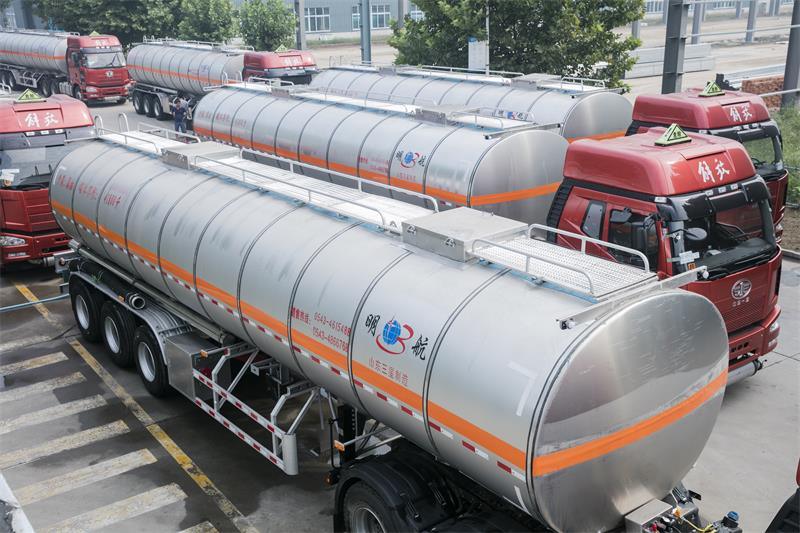

Three Axles Transport Aluminum Tank Truck Semi Trailer

Quantity:
  • Semi-Trailer

  • 30000kg

  • 7500 mm + 1310 mm + 1310 mm

  • 1840mm

  • Heavy Duty

  • Mechanical Suspension

  • Tank

  • 3

  • 12+1spare

  • Not Self-dumping

  • No ABS Anti-lock Braking System

  • Aluminum

  • New

  • Carry Fuel Fuel, &Oil, &Diesel& Drink Water& Milk

  • Nude

  • 11000*2500*3700mm(30, 000L)

  • JSIE

  • China

  • 8716399000

  • 2500units/Year

SPECIFICATION
30,000L-45,000L 3-axle Tank Semi-trailer
Feature: Carry Fuel, Oil, Diesel, Drink water, Milk, Beer and other chemical liquid
Dimension(L*W*H): 11000*2500*3700mm(30,000L)
11700*2500*3750mm(40,000L)
Model JS9406GYY
Material: Carbon Steel Stainless Steel Aluminum
Compartment: 3-6
Capacity(kgs): 30,000L-45,000L
Tare weight(kgs): 10,000-11,000kgs 10,000-11,000kgs 6,000-7,000kgs
Kingpin The world-famous JOST brand bolt-in/welded type 3.5"/2"
Landing gear JOST brand two-speed manual operation 19"
Tire size 11.00R20,11R22.5,12R22.5,315/80R22.5,385/65R22.5
Rim size 8.25*22.5,9.00*22.5,11.75*22.5
Axle Original BPW-12T/ FUWA-13T
Leafs spring Germany type with 12pcs of leafs spring/ Fuwa brand with 8pcs of leafs spring/ Airbag suspension
Brake system One unit WABCO RE 4 relay valve; four units T30/30 spring brake chamber; two units T30 spring brake chamber; two units reliable local brand 45L air tank; two units reliable local brand standard coppery air-connector.
Manhole: Aluminum alloy ø500mm(20") manhole with aluminum alloy cover; with breather valve;
Discharge Valve Aluminum alloy discharge valve with cover
Foot Valve Pneumatic control DN80 aluminum alloy foot valves
Pneumatic Control system 1set Pneumatic Control combined switch
1unit emergency switch
Discharge Hose 2 units 3"×6M factory PVC hose with quick coupling on both ends
Vapor Recovery & Overfill system Optional
Fire Extinguisher Carrier 2 units at the left of rear of tanker, include 2 units 8kg dry powder type fire extinguisher inside
Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Prime & Topcoat painting S.A.2.5 standard sandblasting ;Zinc-rich & Polyurethane painting
We can build the trailers according to customer's design and requirement
